Two-Stage Genomic Analysis

Integrating GBLUP with two-stage MET workflows

Overview

This tutorial extends the two-stage MET workflow to include genomic information. By incorporating a genomic relationship matrix (GRM) at Stage 2, we can:

• Obtain genomic estimated breeding values (GEBVs)
• Predict performance of untested genotypes
• Leverage marker information for selection decisions

The key innovation is using GM(geno, GRM) alongside vcov(RMAT) to combine genomic relationships with properly propagated BLUE uncertainty.

NoteLearning Objectives

• Prepare and align a GRM for Stage 2 analysis
• Fit GBLUP models using GM() with vcov(RMAT)
• Use the mandala_gp() wrapper for streamlined genomic prediction
• Extract and compare GEBVs from different approaches
• Understand when genomic prediction adds value

ImportantPrerequisites

This tutorial assumes completion of Tutorial 06: Two-Stage MET. You should understand:

• The two-stage workflow (Stage 1 BLUEs, Stage 2 analysis)
• How vcov(RMAT) propagates BLUE uncertainty
• Basic heritability and variance component concepts

Data Setup

We’ll use the same phenotypic data structure as Tutorial 06, plus a simulated GRM.

library(mandala)
library(dplyr)
library(ggplot2)
library(Matrix)

Simulate Phenotypic Data

set.seed(42)

n_env <- 4
n_geno <- 50
n_rep <- 2
n_row <- 10
n_col <- 10

# Create base data structure
df <- expand.grid(
  env = paste0("E", 1:n_env),
  geno = paste0("G", sprintf("%03d", 1:n_geno)),
  rep = 1:n_rep
)

# Assign spatial positions
df <- df %>%
  group_by(env, rep) %>%
  mutate(
    row = rep(1:n_row, length.out = n()),
    col = rep(1:n_col, each = n_row)[1:n()]
  ) %>%
  ungroup()

# Simulate effects
env_effects <- rnorm(n_env, mean = 0, sd = 5)
names(env_effects) <- paste0("E", 1:n_env)

geno_effects <- rnorm(n_geno, mean = 0, sd = 3)
names(geno_effects) <- paste0("G", sprintf("%03d", 1:n_geno))

# GxE interaction
gxe_effects <- matrix(rnorm(n_env * n_geno, mean = 0, sd = 2),
                      nrow = n_geno, ncol = n_env)
rownames(gxe_effects) <- names(geno_effects)
colnames(gxe_effects) <- names(env_effects)

# Build response
df <- df %>%
  mutate(
    yld = 100 +
      env_effects[as.character(env)] +
      geno_effects[as.character(geno)] +
      sapply(1:n(), function(i) gxe_effects[as.character(geno[i]), as.character(env[i])]) +
      rnorm(n(), mean = 0, sd = 2)
  )

# Convert to factors
df$env <- as.factor(df$env)
df$geno <- as.factor(df$geno)
df$rep <- as.factor(df$rep)
df$row <- as.factor(df$row)
df$col <- as.factor(df$col)
df$block <- df$rep

head(df)

# A tibble: 6 × 7
  env   geno  rep   row   col     yld block
  <fct> <fct> <fct> <fct> <fct> <dbl> <fct>
1 E1    G001  1     1     1     111.  1
2 E2    G001  1     1     1      95.0 1
3 E3    G001  1     1     1     101.  1
4 E4    G001  1     1     1     102.  1
5 E1    G002  1     2     1     105.  1
6 E2    G002  1     2     1      96.3 1

Simulate Genomic Relationship Matrix

In practice, you would compute the GRM from marker data. Here we simulate one that reflects the true genetic effects.

# Simulate a GRM based on true genetic effects
# In practice, use markers and compute with A.mat() or similar

geno_names <- paste0("G", sprintf("%03d", 1:n_geno))

# Create a correlation structure based on genetic similarity
set.seed(123)
n_markers <- 1000
markers <- matrix(sample(0:2, n_geno * n_markers, replace = TRUE),
                  nrow = n_geno, ncol = n_markers)
rownames(markers) <- geno_names

# Compute realized relationship matrix (VanRaden method 1)
p <- colMeans(markers) / 2
P <- 2 * (p - 0.5)
Z <- scale(markers, center = TRUE, scale = FALSE)
GRM <- tcrossprod(Z) / (2 * sum(p * (1 - p)))

# Ensure positive definiteness
GRM <- GRM + diag(1e-6, nrow(GRM))
rownames(GRM) <- colnames(GRM) <- geno_names

# Preview
GRM[1:5, 1:5]

             G001         G002         G003         G004        G005
G001  1.310757677  0.007381282 -0.039952294  0.002639819 -0.07516880
G002  0.007381282  1.246970820 -0.022202203 -0.022161677 -0.03918231
G003 -0.039952294 -0.022202203  1.302247359  0.005476592 -0.03991177
G004  0.002639819 -0.022161677  0.005476592  1.320564804 -0.05810764
G005 -0.075168798 -0.039182312 -0.039911768 -0.058107638  1.33312765

Stage 1: Per-Environment Analysis

This follows the same workflow as Tutorial 06.

# Stage 1 preparation
s1_prep <- stage1_prep(
  df              = df,
  env_col         = "env",
  s1_fixed        = yld ~ geno,
  s1_random       = ~ rep + row + col,
  s1_classify_term = "geno",
  response_var    = "yld"
)

# Audit
stage1_audit(df, s1_prep)

  env rows nonmiss_response nonmiss_id n_id_levels
1  E1  100              100        100          50
2  E2  100              100        100          50
3  E3  100              100        100          50
4  E4  100              100        100          50

# Run Stage 1
MET_stage1_run <- mandala_stage1(
  df   = df,
  prep = s1_prep
)

Explicit param_df Check:
      name  type vc_idx     init lower upper origin
1      rep   var      1 5.955770 1e-06   Inf      G
2      row   var      2 5.955770 1e-06   Inf      G
3      col   var      3 5.955770 1e-06   Inf      G
4 R.sigma2 R_var      0 7.444713 1e-06   Inf      R
--- Starting EM Warmup ---
--- EM Warmup Complete. Starting AI-REML ---
 Iter     LogLik   Sigma2  DF     wall    Restrained
Main AI-REML Loop finished. Combining results.
solveMME_cpp: adding nugget 3.79815e-07 to MME diagonal (scaled from median diag)

Notes:
- The predictions are obtained by averaging across the hypertable
  calculated from model terms constructed solely from factors in
  the averaging and classify sets.
- The simple averaging set: (none)
- The ignored set: rep, row, col

Explicit param_df Check:
      name  type vc_idx     init lower upper origin
1      rep   var      1 7.935386 1e-06   Inf      G
2      row   var      2 7.935386 1e-06   Inf      G
3      col   var      3 7.935386 1e-06   Inf      G
4 R.sigma2 R_var      0 9.919232 1e-06   Inf      R
--- Starting EM Warmup ---
--- EM Warmup Complete. Starting AI-REML ---
 Iter     LogLik   Sigma2  DF     wall    Restrained
Main AI-REML Loop finished. Combining results.
solveMME_cpp: adding nugget 6.51258e-07 to MME diagonal (scaled from median diag)

Notes:
- The predictions are obtained by averaging across the hypertable
  calculated from model terms constructed solely from factors in
  the averaging and classify sets.
- The simple averaging set: (none)
- The ignored set: rep, row, col

Explicit param_df Check:
      name  type vc_idx      init lower upper origin
1      rep   var      1  8.419766 1e-06   Inf      G
2      row   var      2  8.419766 1e-06   Inf      G
3      col   var      3  8.419766 1e-06   Inf      G
4 R.sigma2 R_var      0 10.524707 1e-06   Inf      R
--- Starting EM Warmup ---
--- EM Warmup Complete. Starting AI-REML ---
 Iter     LogLik   Sigma2  DF     wall    Restrained
Main AI-REML Loop finished. Combining results.
solveMME_cpp: adding nugget 5.46104e-07 to MME diagonal (scaled from median diag)

Notes:
- The predictions are obtained by averaging across the hypertable
  calculated from model terms constructed solely from factors in
  the averaging and classify sets.
- The simple averaging set: (none)
- The ignored set: rep, row, col

Explicit param_df Check:
      name  type vc_idx     init lower upper origin
1      rep   var      1 5.782310 1e-06   Inf      G
2      row   var      2 5.782310 1e-06   Inf      G
3      col   var      3 5.782310 1e-06   Inf      G
4 R.sigma2 R_var      0 7.227887 1e-06   Inf      R
--- Starting EM Warmup ---
--- EM Warmup Complete. Starting AI-REML ---
 Iter     LogLik   Sigma2  DF     wall    Restrained
Main AI-REML Loop finished. Combining results.
solveMME_cpp: adding nugget 6.62442e-07 to MME diagonal (scaled from median diag)

Notes:
- The predictions are obtained by averaging across the hypertable
  calculated from model terms constructed solely from factors in
  the averaging and classify sets.
- The simple averaging set: (none)
- The ignored set: rep, row, col

# Bundle outputs
bundle <- stage1_bundle(MET_stage1_run)

cat("Stage 1 complete. BLUEs extracted for", nrow(bundle$blues), "observations\n")

Stage 1 complete. BLUEs extracted for 200 observations

Stage 2: Prepare Data and Matrices

# Create Stage 2 data and RMAT
s2_inputs <- stage2_prep(
  bundle    = bundle,
  df_name   = "stage2_data",
  vcov_name = "RMAT",
  out_env   = "env",
  out_id    = "geno",
  out_resp  = "yld"
)

s2_data <- s2_inputs$stage2_data
RMAT    <- s2_inputs$RMAT

# Align row IDs
rownames(s2_data) <- paste0(s2_data$env, "|", s2_data$geno)
s2_data <- s2_data[rownames(RMAT), , drop = FALSE]

# Ensure Matrix format
if (!inherits(RMAT, "Matrix")) {
  RMAT <- Matrix::forceSymmetric(Matrix::Matrix(RMAT, sparse = TRUE))
}

head(s2_data)

        env geno      yld
E1|G001  E1 G001 109.6486
E1|G002  E1 G002 109.0374
E1|G003  E1 G003 113.4323
E1|G004  E1 G004 108.8724
E1|G005  E1 G005 107.4882
E1|G006  E1 G006 106.9827

Prepare GRM for Stage 2

Use mandala_grm_prep() to align and scale the GRM for the Stage 2 genotype set.

# For this tutorial, we'll prepare the GRM manually
# In practice with a file: mandala_grm_prep(GRM = "path/to/grm.csv", ...)

# Subset GRM to genotypes in s2_data
genos_in_s2 <- unique(s2_data$geno)
GRM_subset <- GRM[as.character(genos_in_s2), as.character(genos_in_s2)]

# Add small ridge for numerical stability
lambda <- 1e-8
GRM_subset <- GRM_subset + diag(lambda, nrow(GRM_subset))

# Convert to Matrix class
GRM_subset <- Matrix::Matrix(GRM_subset, sparse = FALSE)

cat("GRM dimensions:", dim(GRM_subset), "\n")

GRM dimensions: 50 50

cat("Genotypes in GRM:", nrow(GRM_subset), "\n")

Genotypes in GRM: 50

Stage 2 with GRM (GBLUP)

Now we fit the Stage 2 model with genomic relationships using GM(geno, GRM).

stage2_gblup <- mandala(
  fixed       = yld ~ env,
  random      = ~ GM(geno, GRM),
  R_formula   = ~ vcov(RMAT),
  data        = s2_data,
  matrix_list = list(RMAT = RMAT, GRM = GRM_subset)
)

Initial data rows: 200
Final data rows after NA handling: 200
Explicit param_df Check:
          name  type vc_idx     init lower upper origin
1 GM(geno,GRM)   var      1 11.99967 1e-06   Inf      G
2     R.sigma2 R_var      0 14.99959 1e-06   Inf      R

--- EM Warmup Skipped. Starting AI-REML ---

Starting AI-REML logLik = -558.3649
 Iter     LogLik   Sigma2  DF     wall    Restrained
    1  -547.9894    11.400  196  09:41:56  ( 0 restrained)
    2  -540.6867     8.664  196  09:41:56  ( 0 restrained)
    3  -533.1870     5.290  196  09:41:56  ( 0 restrained)
    4  -532.8520     3.156  196  09:41:56  ( 0 restrained)
    5  -532.8520     3.156  196  09:41:56  ( 0 restrained)
Converged at iter 5 by tolerance(s): delta_theta=0.00e+00, delta_loglik=0.00e+00
Main AI-REML Loop finished. Combining results.
solveMME_cpp: adding nugget 0.00247173 to MME diagonal (scaled from median diag)

summary(stage2_gblup)

Model statement:
mandala(fixed = yld ~ env, random = ~GM(geno, GRM), data = s2_data,
    matrix_list = list(RMAT = RMAT, GRM = GRM_subset), R_formula = ~vcov(RMAT))

Variance Components:
    component estimate std.error  z.ratio bound %ch
 GM(geno,GRM) 8.015792 2.0501810 3.909797     P  NA
     R.sigma2 3.155855 0.9579506 3.294381     P  NA

Fixed Effects (BLUEs) [first 5]:
      effect   estimate std.error   z.ratio
 (Intercept) 107.171738 0.2511531 426.71868
       envE2 -10.622834 0.3551976 -29.90683
       envE3  -5.485344 0.3551976 -15.44308
       envE4  -4.448287 0.3551976 -12.52342

Converged: TRUE  |  Iterations: 5

Random Effects (BLUPs) [first 5]:
       random level   estimate std.error    z.ratio
 GM(geno,GRM)  G001  0.5389986 0.8469212  0.6364212
 GM(geno,GRM)  G002  0.2114432 0.8447910  0.2502905
 GM(geno,GRM)  G003  3.6846055 0.8464394  4.3530646
 GM(geno,GRM)  G004 -1.6141332 0.8468802 -1.9059759
 GM(geno,GRM)  G005  3.4298982 0.8471452  4.0487727

logLik: -532.852   AIC: 1069.704   BIC: 1076.260   logLik_Trunc: -352.740

Extract GEBVs

gebvs <- mandala_predict(stage2_gblup, classify_term = "geno")

Notes:
- The predictions are obtained by averaging across the hypertable
  calculated from model terms constructed solely from factors in
  the averaging and classify sets.
- The simple averaging set: env, [num mean]

head(gebvs)

  geno predicted_value std_error
1 G001        102.5716 0.8561858
2 G002        102.2441 0.8540787
3 G003        105.7172 0.8557092
4 G004        100.4185 0.8561452
5 G005        105.4625 0.8564073
6 G006        102.4956 0.8567694

Using mandala_gp() Wrapper

For convenience, mandala_gp() wraps the GRM preparation and model fitting into a single call.

# Example using mandala_gp() with a GRM file
# In practice, you would provide a path to your GRM file

gp_fit <- mandala_gp(
  GRM       = GRM_subset,        # Can also be a file path: "path/to/grm.csv"
  GRM_label = "GRM",
  data      = s2_data,
  gen_col   = "geno",
  fixed     = yld ~ env,
  random    = ~ GM(geno, GRM),
  R_formula = ~ vcov(RMAT),
  R_matrix  = RMAT,
  lambda    = 1e-8,
  scale     = FALSE,
  method    = "sparse"
)

summary(gp_fit$fit)

For this tutorial, we’ll demonstrate with the manual approach since we have the GRM in memory:

# The stage2_gblup model we already fit is equivalent
# Extract predictions
gebv_predictions <- mandala_predict(stage2_gblup, classify_term = "geno")

Notes:
- The predictions are obtained by averaging across the hypertable
  calculated from model terms constructed solely from factors in
  the averaging and classify sets.
- The simple averaging set: env, [num mean]

head(gebv_predictions)

  geno predicted_value std_error
1 G001        102.5716 0.8561858
2 G002        102.2441 0.8540787
3 G003        105.7172 0.8557092
4 G004        100.4185 0.8561452
5 G005        105.4625 0.8564073
6 G006        102.4956 0.8567694

Comparing Approaches

Let’s compare predictions from: 1. Phenotypic Stage 2 (no GRM) — Tutorial 06 approach 2. Genomic Stage 2 (with GRM) — GBLUP

Fit Non-Genomic Stage 2

stage2_pheno <- mandala(
  fixed       = yld ~ env,
  random      = ~ geno,
  R_formula   = ~ vcov(RMAT),
  data        = s2_data,
  matrix_list = list(RMAT = RMAT)
)

Initial data rows: 200
Final data rows after NA handling: 200
Explicit param_df Check:
      name  type vc_idx     init lower upper origin
1     geno   var      1 11.99967 1e-06   Inf      G
2 R.sigma2 R_var      0 14.99959 1e-06   Inf      R

--- EM Warmup Skipped. Starting AI-REML ---

Starting AI-REML logLik = -558.3649
 Iter     LogLik   Sigma2  DF     wall    Restrained
    1  -548.2637    11.400  196  09:41:57  ( 0 restrained)
    2  -540.7545     8.664  196  09:41:57  ( 0 restrained)
    3  -532.8004     5.241  196  09:41:57  ( 0 restrained)
    4  -532.4003     3.071  196  09:41:57  ( 0 restrained)
    5  -532.4003     3.071  196  09:41:57  ( 0 restrained)
Converged at iter 5 by tolerance(s): delta_theta=0.00e+00, delta_loglik=0.00e+00
Main AI-REML Loop finished. Combining results.
solveMME_cpp: adding nugget 1.40104e-06 to MME diagonal (scaled from median diag)

pheno_preds <- mandala_predict(stage2_pheno, classify_term = "geno")

Notes:
- The predictions are obtained by averaging across the hypertable
  calculated from model terms constructed solely from factors in
  the averaging and classify sets.
- The simple averaging set: env, [num mean]

Merge and Compare

# Phenotypic predictions
p_pheno <- pheno_preds[, c("geno", "predicted_value")]
names(p_pheno) <- c("geno", "pred_pheno")

# Genomic predictions
p_geno <- gebv_predictions[, c("geno", "predicted_value")]
names(p_geno) <- c("geno", "pred_genomic")

# Merge
comparison <- merge(p_pheno, p_geno, by = "geno")

# Correlation
cor_pg <- cor(comparison$pred_pheno, comparison$pred_genomic, use = "complete.obs")
cat("Correlation (phenotypic vs genomic):", round(cor_pg, 3), "\n")

Correlation (phenotypic vs genomic): 1

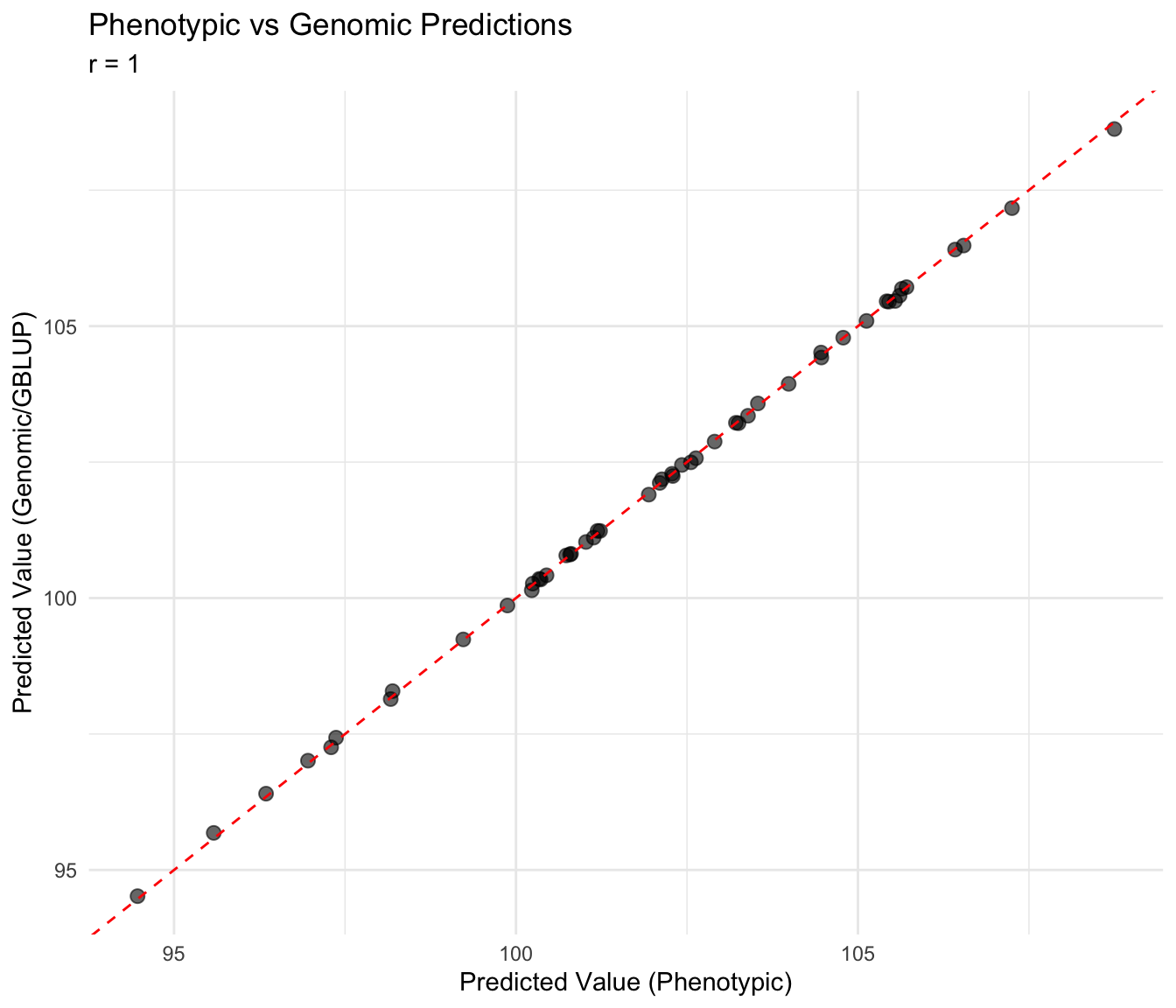

ggplot(comparison, aes(x = pred_pheno, y = pred_genomic)) +
  geom_point(alpha = 0.6, size = 2.5) +
  geom_abline(intercept = 0, slope = 1, linetype = "dashed", color = "red") +
  labs(
    title = "Phenotypic vs Genomic Predictions",
    subtitle = paste("r =", round(cor_pg, 3)),
    x = "Predicted Value (Phenotypic)",
    y = "Predicted Value (Genomic/GBLUP)"
  ) +
  theme_minimal()

Variance Components Comparison

cat("=== Phenotypic Model Variance Components ===\n")

=== Phenotypic Model Variance Components ===

print(summary(stage2_pheno)$varcomp)

Model statement:
mandala(fixed = yld ~ env, random = ~geno, data = s2_data, matrix_list = list(RMAT = RMAT),
    R_formula = ~vcov(RMAT))

Variance Components:
 component  estimate std.error  z.ratio bound %ch
      geno 10.130038 2.6049988 3.888692     P  NA
  R.sigma2  3.071444 0.9516386 3.227532     P  NA

Fixed Effects (BLUEs) [first 5]:
      effect   estimate std.error   z.ratio
 (Intercept) 107.191623 0.5138352 208.61088
       envE2 -10.644406 0.3505106 -30.36828
       envE3  -5.506115 0.3505106 -15.70884
       envE4  -4.468897 0.3505106 -12.74967

Converged: TRUE  |  Iterations: 5

Random Effects (BLUPs) [first 5]:
 random level   estimate std.error    z.ratio
   geno  G001  0.5943664 0.9497788  0.6257945
   geno  G002  0.2551813 0.9497788  0.2686745
   geno  G003  3.6729523 0.9497788  3.8671660
   geno  G004 -1.5904980 0.9497788 -1.6745983
   geno  G005  3.5063399 0.9497788  3.6917436

logLik: -532.400   AIC: 1068.801   BIC: 1075.357   logLik_Trunc: -352.288
  component  estimate std.error  z.ratio bound %ch
1      geno 10.130038 2.6049988 3.888692     P  NA
2  R.sigma2  3.071444 0.9516386 3.227532     P  NA

cat("\n=== Genomic Model Variance Components ===\n")

=== Genomic Model Variance Components ===

print(summary(stage2_gblup)$varcomp)

Model statement:
mandala(fixed = yld ~ env, random = ~GM(geno, GRM), data = s2_data,
    matrix_list = list(RMAT = RMAT, GRM = GRM_subset), R_formula = ~vcov(RMAT))

Variance Components:
    component estimate std.error  z.ratio bound %ch
 GM(geno,GRM) 8.015792 2.0501810 3.909797     P  NA
     R.sigma2 3.155855 0.9579506 3.294381     P  NA

Fixed Effects (BLUEs) [first 5]:
      effect   estimate std.error   z.ratio
 (Intercept) 107.171738 0.2511531 426.71868
       envE2 -10.622834 0.3551976 -29.90683
       envE3  -5.485344 0.3551976 -15.44308
       envE4  -4.448287 0.3551976 -12.52342

Converged: TRUE  |  Iterations: 5

Random Effects (BLUPs) [first 5]:
       random level   estimate std.error    z.ratio
 GM(geno,GRM)  G001  0.5389986 0.8469212  0.6364212
 GM(geno,GRM)  G002  0.2114432 0.8447910  0.2502905
 GM(geno,GRM)  G003  3.6846055 0.8464394  4.3530646
 GM(geno,GRM)  G004 -1.6141332 0.8468802 -1.9059759
 GM(geno,GRM)  G005  3.4298982 0.8471452  4.0487727

logLik: -532.852   AIC: 1069.704   BIC: 1076.260   logLik_Trunc: -352.740
     component estimate std.error  z.ratio bound %ch
1 GM(geno,GRM) 8.015792 2.0501810 3.909797     P  NA
2     R.sigma2 3.155855 0.9579506 3.294381     P  NA

When Does Genomic Prediction Help?

Genomic prediction provides the most benefit when:

Scenario	Benefit
Predicting untested genotypes	GRM allows prediction for genotypes without phenotypic data
Low heritability traits	Genomic info adds signal when phenotypes are noisy
Small family sizes	GRM captures relationships beyond pedigree
Selection accuracy	GEBVs often outperform phenotypic BLUPs

TipCross-Validation

To assess prediction accuracy, use mandala_gp_cv() for cross-validation:

cv_results <- mandala_gp_cv(
  GRM       = GRM,
  data      = s2_data,
  gen_col   = "geno",
  fixed     = yld ~ env,
  random    = ~ GM(geno, GRM),
  R_formula = ~ vcov(RMAT),
  R_matrix  = RMAT,
  nfold     = 5,
  nrep      = 3
)

Summary

TipKey Takeaways

1. GRM integration at Stage 2 enables genomic prediction on BLUEs
2. Use GM(geno, GRM) to specify genomic relationship structure
3. Combine with vcov(RMAT) to properly weight BLUE uncertainty
4. mandala_grm_prep() handles GRM alignment and scaling
5. mandala_gp() provides a convenient wrapper for the full workflow
6. Genomic predictions are most valuable for untested genotypes and low-heritability traits

Next Steps

• Explore cross-validation with mandala_gp_cv() to assess prediction accuracy
• Consider factor-analytic models (FA()) for complex G×E patterns
• Review the Quick Reference for function details

Session Information

sessionInfo()

R version 4.5.2 (2025-10-31)
Platform: aarch64-apple-darwin20
Running under: macOS Tahoe 26.2

Matrix products: default
BLAS:   /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.12.1

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

time zone: America/New_York
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] Matrix_1.7-4  ggplot2_4.0.2 dplyr_1.2.0   mandala_1.0.1

loaded via a namespace (and not attached):
 [1] vctrs_0.7.1        cli_3.6.5          knitr_1.51         rlang_1.1.7
 [5] xfun_0.56          generics_0.1.4     S7_0.2.1           jsonlite_2.0.0
 [9] labeling_0.4.3     glue_1.8.0         htmltools_0.5.9    scales_1.4.0
[13] rmarkdown_2.30     grid_4.5.2         evaluate_1.0.5     tibble_3.3.1
[17] fastmap_1.2.0      yaml_2.3.12        lifecycle_1.0.5    compiler_4.5.2
[21] RColorBrewer_1.1-3 Rcpp_1.1.1         pkgconfig_2.0.3    farver_2.1.2
[25] lattice_0.22-7     digest_0.6.39      R6_2.6.1           utf8_1.2.6
[29] tidyselect_1.2.1   pillar_1.11.1      magrittr_2.0.4     withr_3.0.2
[33] gtable_0.3.6       tools_4.5.2
